Used, tested and functional, rack mount and power cable included
Smart Manageable PoE Switch

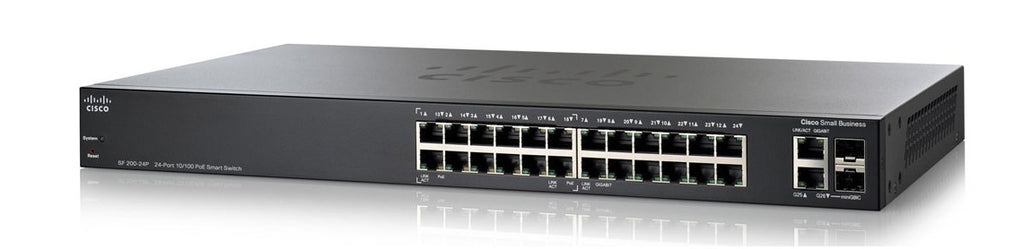

🔀 Cisco SF200-24P — 24 Ports 10/100 PoE Smart Switch
SLM224PT · V03 · 12 PoE 802.3af Ports · 2 Combo Gigabit SFP Ports · Rackable 1U 19"
✅ Tested & Functional📦 Power cable included🔩 Rack mount included⚡ PoE 802.3af — 100W budget
📋 Product overview
The Cisco SF200-24P (SLM224PT) is an enterprise-level smart manageable switch, ideal for SMEs seeking advanced network management without the complexity of fully managed equipment. With its 24 Fast Ethernet 10/100 Mbps ports including 12 PoE 802.3af ports, it can directly power your IP phones, Wi-Fi access points, IP cameras, and other PoE devices without additional power adapters.
Its 2 combo Gigabit SFP/RJ45 ports offer flexible uplink connectivity to your core network, via copper or fiber optic. The switch includes an intuitive French web interface for configuring VLANs, QoS, port mirroring, link aggregation, and advanced network security. Rack-mountable 1U 19" format ready for bay installation.
⚙️ Technical Specifications
🏷️
Brand / Model
Cisco SF200-24P
🔢
Reference
SLM224PT · V03
🔌
RJ45 ports
24 × 10/100 Mbps
⚡
PoE ports
12 × 802.3af (max 15.4W)
🌐
Uplink ports
2 × Combo Gigabit SFP
🚀
Switching capacity
8.8 Gbps
🧠
RAM / Flash
128 MB / 16 MB
📋
MAC table
8,000 entries
🔄
OSI level
Layer 2 Smart Managed
📐
Dimensions
440 × 257 × 44 mm (1U)
🔌
Power supply
100–240V, 50/60 Hz
💡
Typical consumption
22.2 W (without PoE)
🌡️
Operating temperature
0 to 40 °C
🔊
Noise level
40.2 dB (1 fan)
🏭
Country of manufacture
China
📦
EAN / UPC
0882658298585
🛠️ Key Features
🗂️
VLAN 802.1Q
Network segmentation up to 128 VLANs to isolate and secure traffic
📊
Advanced QoS
Voice and video traffic prioritization — perfect for ToIP and videoconferencing
🔁
STP / RSTP
Spanning Tree Protocol for network redundancy and loop elimination
🔗
Link Aggregation (802.3ad)
Link aggregation to increase uplink bandwidth
🔍
Port Mirroring
Network monitoring and advanced diagnostics via traffic duplication
🔐
802.1x / RADIUS security
Device authentication and MAC filtering to protect network access
📡
IGMP Snooping
Multicast traffic optimization for video streaming and IPTV
🌍
IPv4 / IPv6
Compatible dual stack for modern network infrastructures
📦 Condition & Contents of the Listing
✅ Condition: Used, tested, and 100% functional. The switch has been carefully inspected and tested before sale. Network performance is optimal. Cosmetic condition is consistent with professional use (minor signs of use possible).
- 🔀 Cisco SF200-24P Switch (SLM224PT V03)
- 🔌 Power cable
- 🔩 19" rack mounting support
- 🧾 Professional invoice with 0% VAT in paper format included in the package
📸 Photos are provided for illustration only. Only the textual content of this listing is authoritative for the exact product reference and included accessories. If in doubt, please contact us before purchasing.
🌟 Why Buy From Us?
🛡️
30-Day WarrantyReturns accepted if not as described
🚚
Secure & Fast ShippingCareful packaging with carrier tracking number
🧾
Professional Invoice0% VAT invoice in paper format included in the package
✅
100% Tested EquipmentEach device is individually checked before shipping
⚠️ Software Clause: We cannot be held responsible for any software incompatibility, specific network configuration, or integration into your infrastructure. We do not provide technical support. Switch configuration is the buyer’s responsibility.
❓ Frequently Asked Questions (FAQ)
❓ Is the Cisco SF200-24P switch compatible with IP phones and PoE Wi-Fi access points?
Yes, the SF200-24P features 12 PoE ports compliant with the IEEE 802.3af standard, capable of delivering up to 15.4W per port with a total budget of 100W. It is perfectly suited to power Cisco, Yealink, Polycom IP phones, low-power 802.11ac/ax Wi-Fi access points, IP cameras, or network intercoms without external power.
❓ How do I access the Cisco SF200 switch’s administration interface?
The Cisco SF200-24P is configured via a graphical web interface (GUI) accessible from a browser — no proprietary software required. By default, the admin IP address is 192.168.1.254 (login: cisco / password: cisco). The interface supports VLAN management, QoS, SNMP, IGMP snooping, port mirroring, port security, and link aggregation.
❓ What is the difference between the SF200-24P and a classic unmanaged switch?
Unlike an unmanaged switch, the SF200-24P is a smart manageable Layer 2 switch offering advanced network management: segmentation via 802.1Q VLANs, VoIP traffic prioritization through QoS, network monitoring via SNMP/RMON, port security with 802.1x authentication, broadcast storm control, and LACP link aggregation. Ideal for SMEs seeking a cost-effective alternative to fully-managed switches.
❓ Are the SF200-24P’s SFP ports compatible with third-party fiber optic modules?
The SF200-24P features 2 Combo Gigabit SFP/RJ45 ports supporting 1000BASE-SX (multimode fiber) and 1000BASE-LX (singlemode fiber) standards for long-distance uplink connections. These ports accept standard market SFP modules. They can also operate as RJ45 copper ports for classic Gigabit Ethernet.
❓ Can the Cisco SF200-24P fit into a standard 19-inch server rack?
Yes, the SF200-24P is a 1U rack-mountable device in 19-inch format (dimensions: 440 × 257 × 44 mm). The rack mounting bracket is included with this listing, ready for installation in a standard server rack. Its compact size and low vertical profile (1U) make it an ideal choice for IT rooms, technical rooms, and professional wiring cabinets.
🔀 Cisco SF200-24P — Professional Smart PoE Switch
Tested used · Secure shipping with tracking · 30-day warranty · Professional invoice included
💬 A question? Contact us via eBay messaging before buying — quick response guaranteed!
